About NAWL Frames

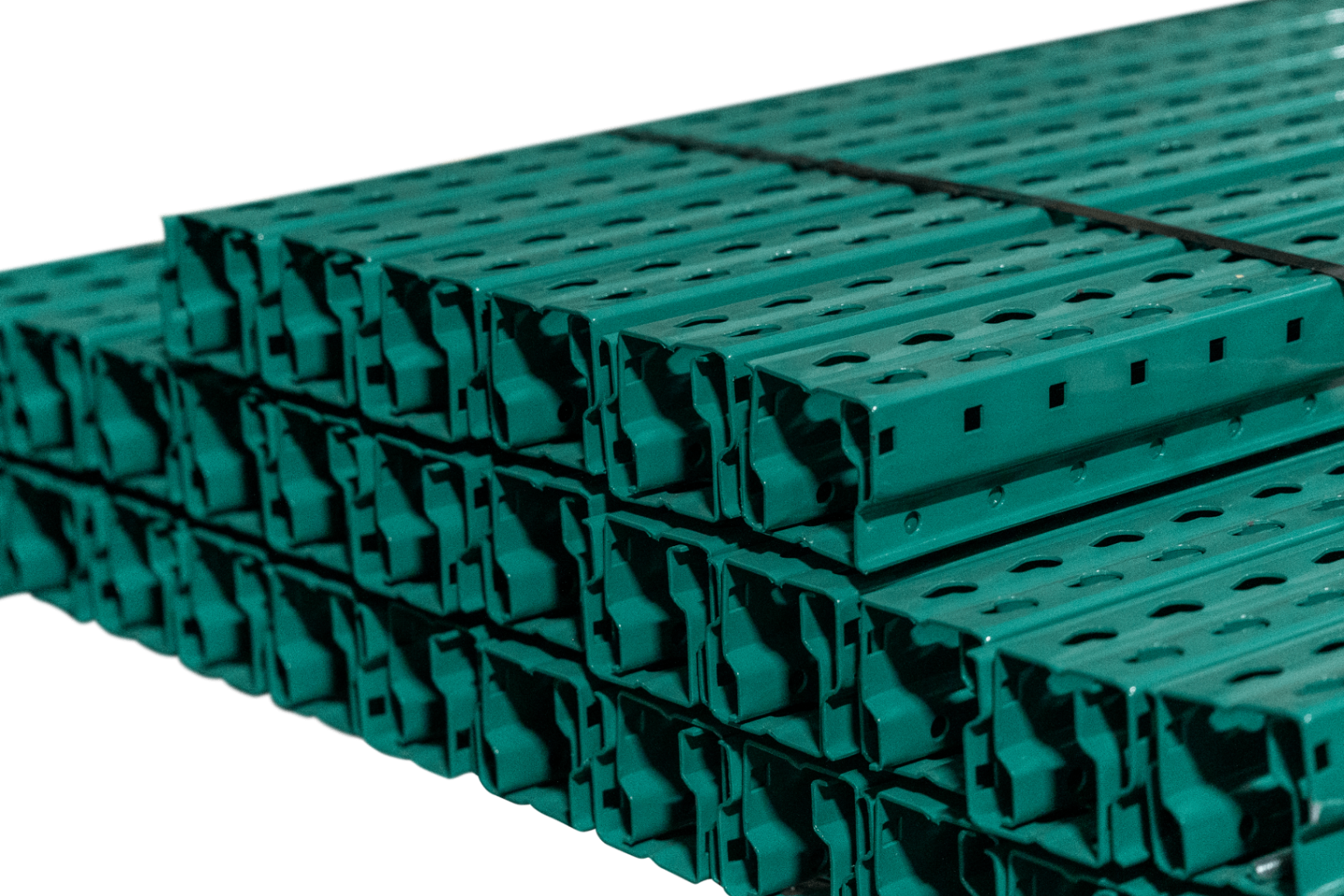

NAWL pallet rack uprights are the structural backbone of every teardrop selective rack system we sell. Each frame is cold-rolled from heavy-gauge steel, punched on standard 2-inch teardrop centers, and welded to NAWL diagonal and horizontal bracing — fully interchangeable with the major North American teardrop brands your customers already run.
We stock 12 SKUs across 24″, 36″, 42″, and 48″ depths in 8′, 10′, and 12′ heights, in both 15- and 16-gauge column profiles. Every upright ships in NAWL green powder-coat, is RMI/ANSI MH16.1 compliant, and is engineered to mate with NAWL step beams, wire decking, and accessories without retrofit.
Dealers buy NAWL frames for three reasons: deep Gulf-Coast inventory (no 8–12 week mill lead times), bracketed wholesale pricing that protects your margin on quotes of any size, and freight that lands in the Southeast, Texas, and the Midwest in days, not weeks. Need a section we don't show? Custom heights, mixed-gauge columns, and color matches are quoted through the dealer portal.
| Size / Model | Part # | Gauge | Weight (lbs) | Retail | Qty | Actions |
|---|---|---|---|---|---|---|
| 24 x 96 | XUPG2409616- | 16 GA | 47.58 | $101.68 | ||
| 36 x 96 | XUPG3609616- | 16 GA | 49.23 | $107.48 | ||
| 42 x 96 | XUPG4209616- | 16 GA | 51.63 | $111.53 | ||
| 48 x 96 | XUPG4809616- | 16 GA | 53.92 | $115.58 | ||
| 24 x 120 | XUPG2412015- | 15 GA | 59.12 | $120.38 | ||
| 36 x 120 | XUPG3612015- | 15 GA | 61.45 | $127.95 | ||
| 42 x 120 | XUPG4212015- | 15 GA | 63.07 | $130.38 | ||
| 48 x 120 | XUPG4812015- | 15 GA | 65.15 | $135.27 | ||
| 24 x 144 | XUPG2414415- | 15 GA | 67.40 | $147.05 | ||
| 36 x 144 | XUPG3614415- | 15 GA | 72.24 | $158.10 | ||
| 42 x 144 | XUPG4214415- | 15 GA | 74.61 | $162.17 | ||
| 48 x 144 | XUPG4814415- | 15 GA | 77.24 | $169.02 |
// Dealers: sign in for wholesale pricing and bulk quote requests through the dealer portal.
Frames — FAQ
Are NAWL pallet rack uprights compatible with other teardrop brands?
Yes. NAWL uses the industry-standard teardrop punch pattern on 2-inch centers, so our frames interchange with the major North American teardrop systems for beams, decking, and accessories.
What gauge are NAWL pallet rack frames?
Stock frames are 16 GA at 8′ heights and 15 GA at 10′ and 12′ heights. Heavier-gauge columns for higher capacity or seismic loading are quoted through the dealer portal.
Are NAWL uprights RMI compliant?
Yes. All NAWL teardrop uprights are designed and tested to RMI / ANSI MH16.1, the U.S. standard for industrial steel storage racks.
