About NAWL Cantilever

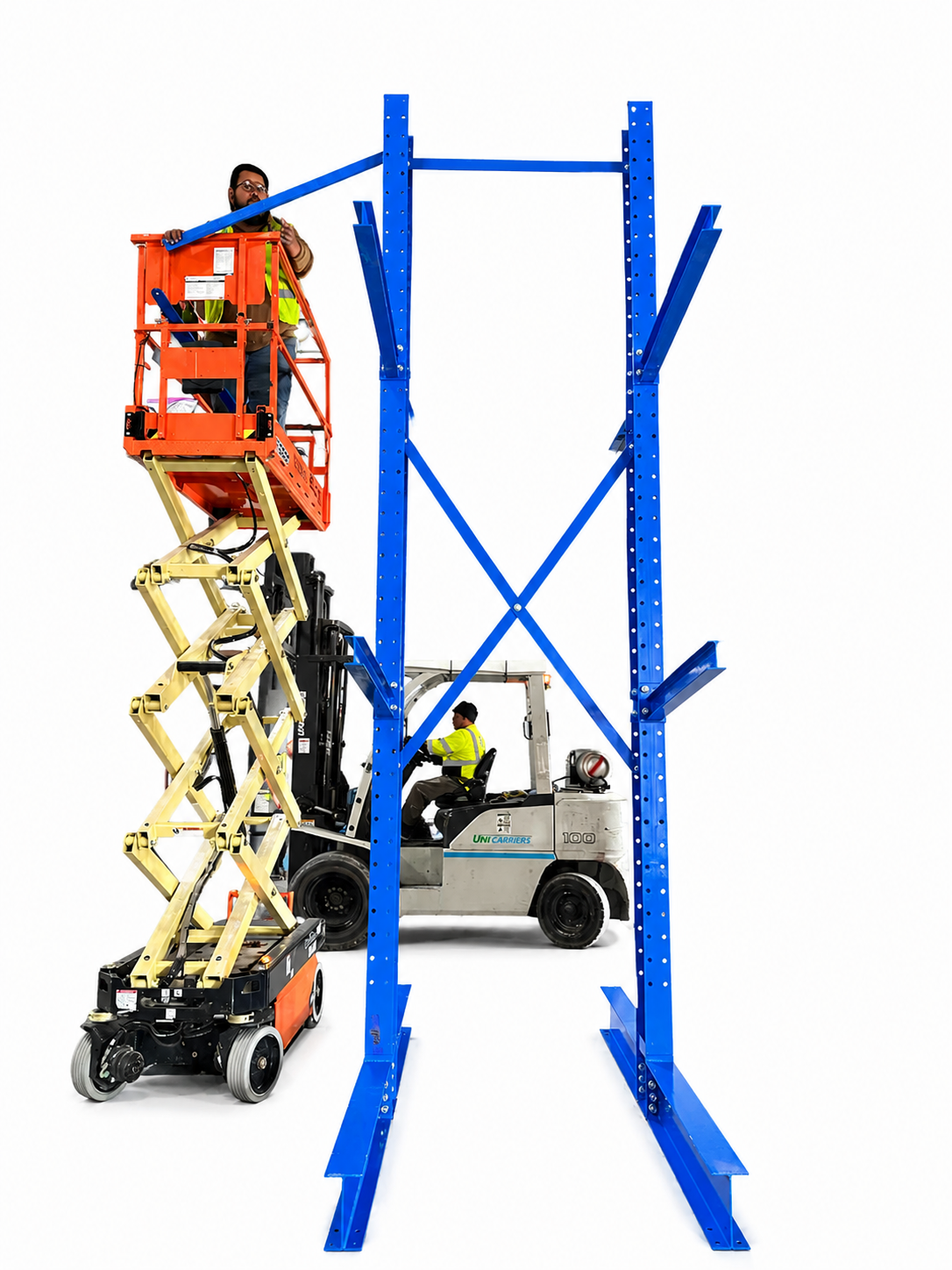

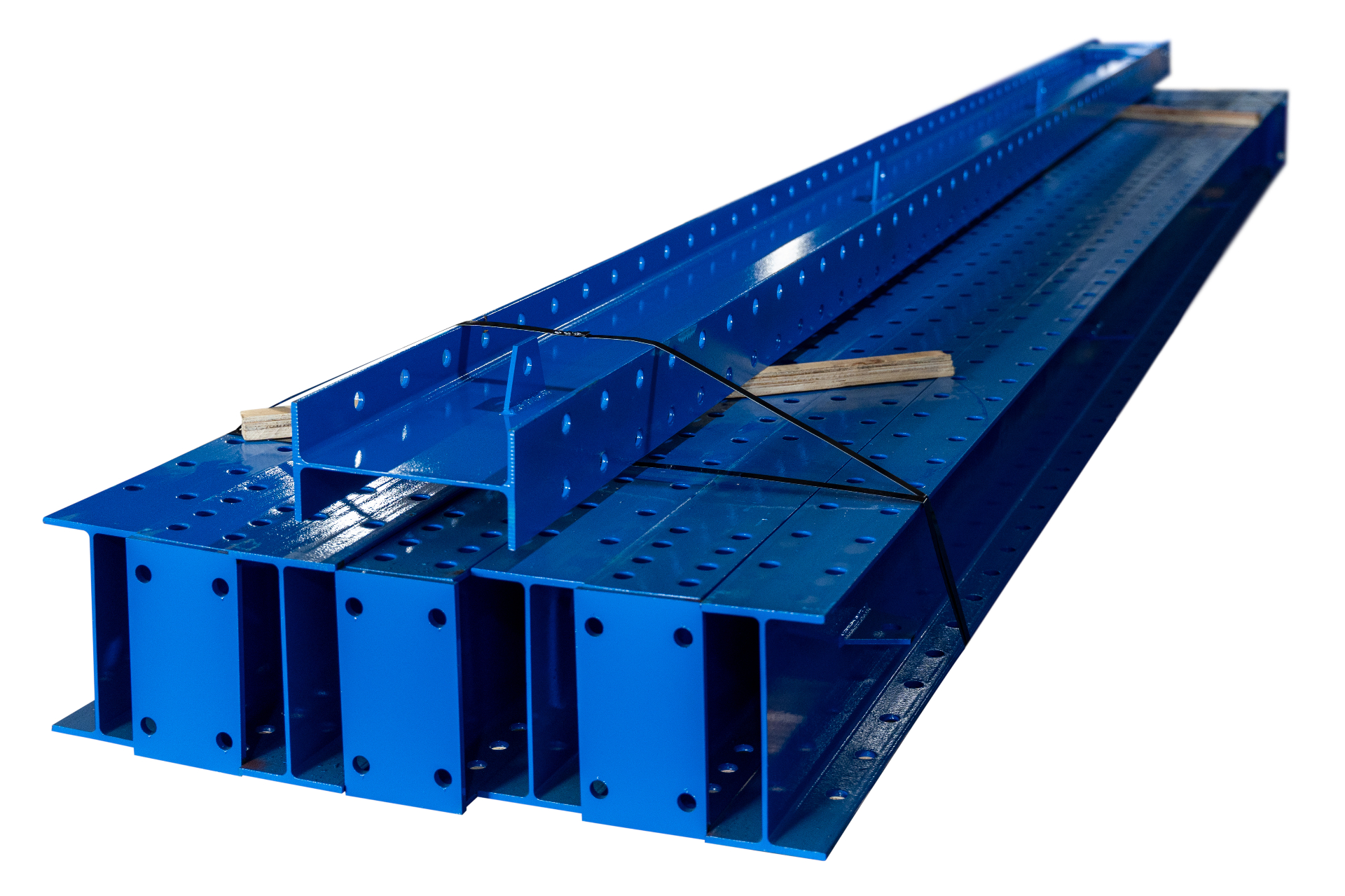

NAWL cantilever rack is engineered for the long, heavy, and awkward loads conventional pallet rack can’t handle — lumber, pipe, tubing, steel bar, conduit, sheet goods, and oversized furniture. Structural-steel columns mount onto wide bases and accept bolt-on adjustable arms, giving the operator a clear, column-free face to load with a forklift or sideloader.
Stock SKUs cover 12′ and 16′ columns rated 12,980 lb and 11,660 lb per side, 48″ and 60″ bases, and straight 48″ and 60″ arms rated 2,640 lb and 3,260 lb each. Configure single- or double-sided runs; arms adjust on 4″ vertical increments for product mix changes without a structural rebuild.
Every component ships in NAWL blue powder-coat, anchor-ready, and designed and tested to RMI / ANSI MH16.3. Dealers buy NAWL cantilever because stock columns and arms ship in days — not the 8–10 weeks domestic mills typically quote — and because bracketed wholesale pricing makes lumberyard, pipe-house, and service-center quotes competitive on the first pass.
| Size / Model | Part # | Spec / Capacity | Weight (lbs) | Retail | Qty | Actions |
|---|---|---|---|---|---|---|
| 12' Column | XCC14400 | 12,980 lbs / side | 219.14 | $868.42 | ||
| 16' Column | XCC19200 | 11,660 lbs / side | 288.34 | $1166.37 | ||
| 48" Base | XCB48000 | — | 75.53 | $298.77 | ||
| 60" Base | XCB60000 | — | 92.84 | $333.54 | ||
| 48" Arm | XCA48004 | 2,640 lbs | 35.29 | $84.28 | ||
| 60" Arm | XCA60400 | 3,260 lbs | 52.69 | $108.51 |
// Dealers: sign in for wholesale pricing and bulk quote requests through the dealer portal.
Cantilever — FAQ
What is cantilever rack used for?
Cantilever rack is the storage standard for long, heavy, and bulky loads — lumber, pipe, tubing, steel bar, conduit, sheet goods, furniture, and any inventory too long for pallet rack. The column-free face lets a forklift or sideloader load from either side without obstruction.
How much weight can NAWL cantilever arms hold?
Stock arms are rated 2,640 lb on the 48″ size and 3,260 lb on the 60″ size, evenly distributed. Heavier arms and structural I-beam arms are quoted through the dealer portal.
Is NAWL cantilever rack single- or double-sided?
Both. NAWL columns and bases configure for single- or double-sided runs out of the same stock SKUs — the base sits in the middle of the aisle and arms bolt to either or both faces.
