About NAWL Beams

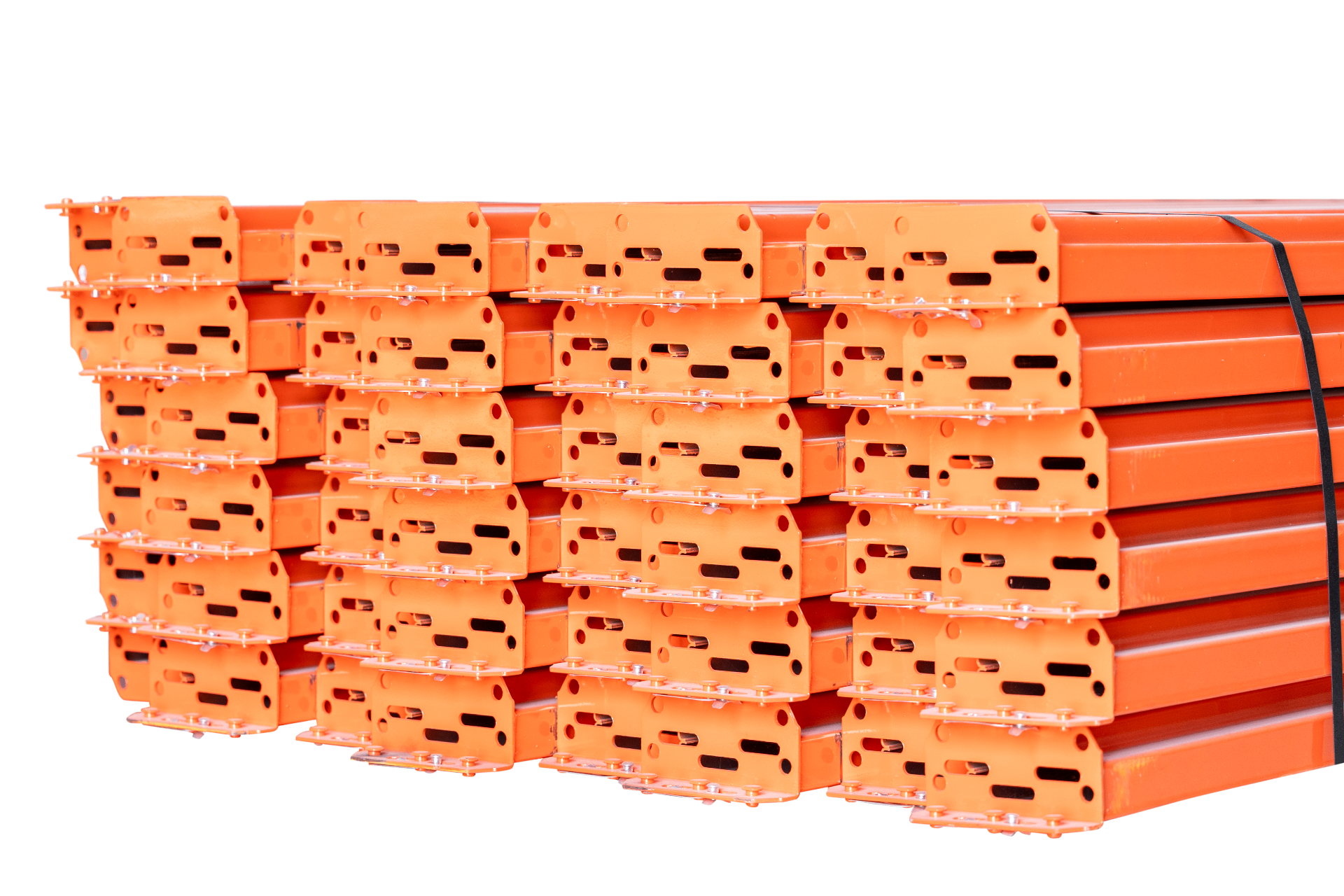

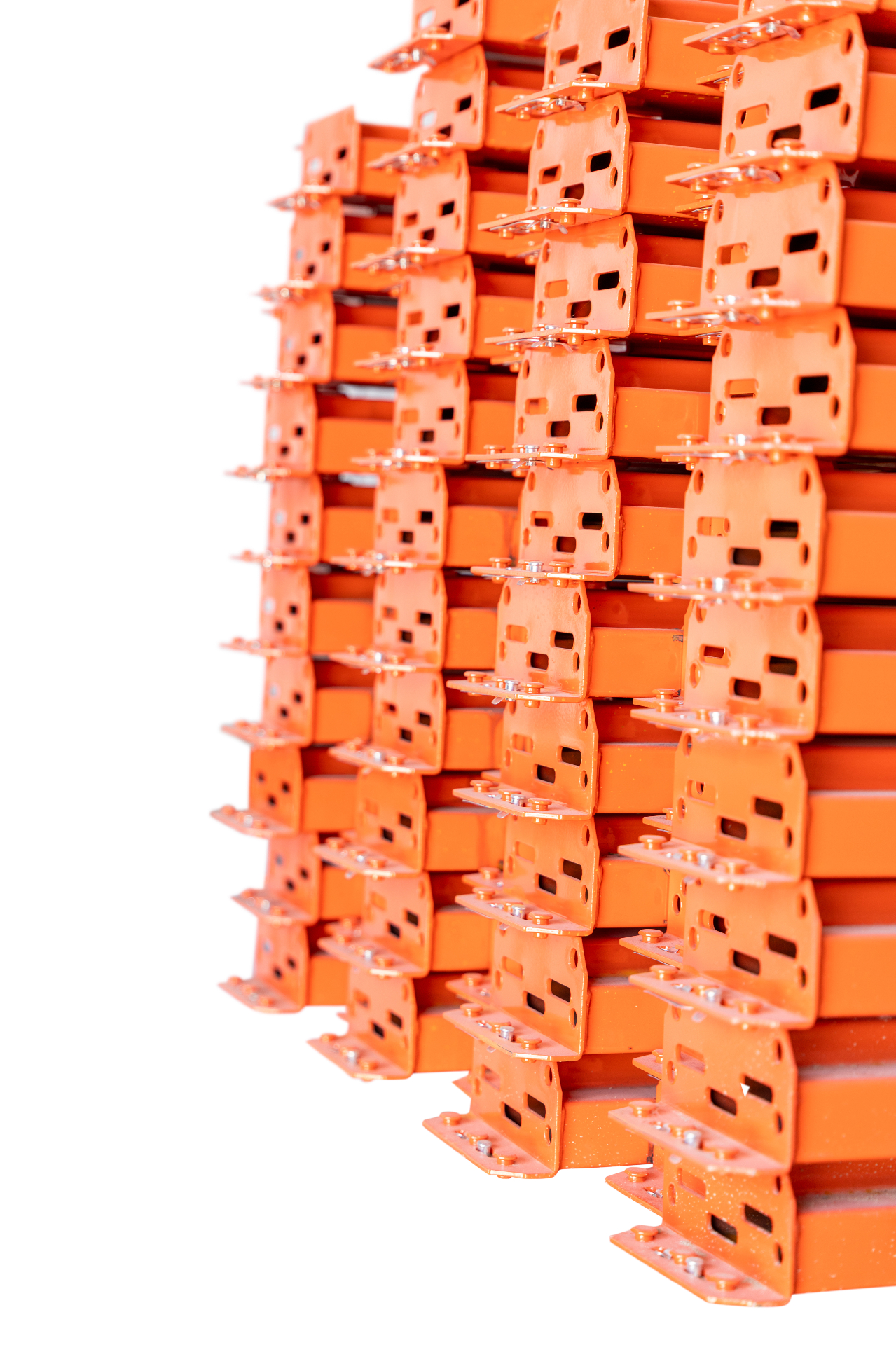

NAWL pallet rack beams are the boltless step-beam standard for selective teardrop systems. Roll-formed from high-strength steel, welded to a 5/16″ connector plate, and locked into the upright with safety pins, every beam carries punched, certified RMI / ANSI MH16.1 load tables — the same evaluation engineers spec against in seismic and FM-Global drawings.

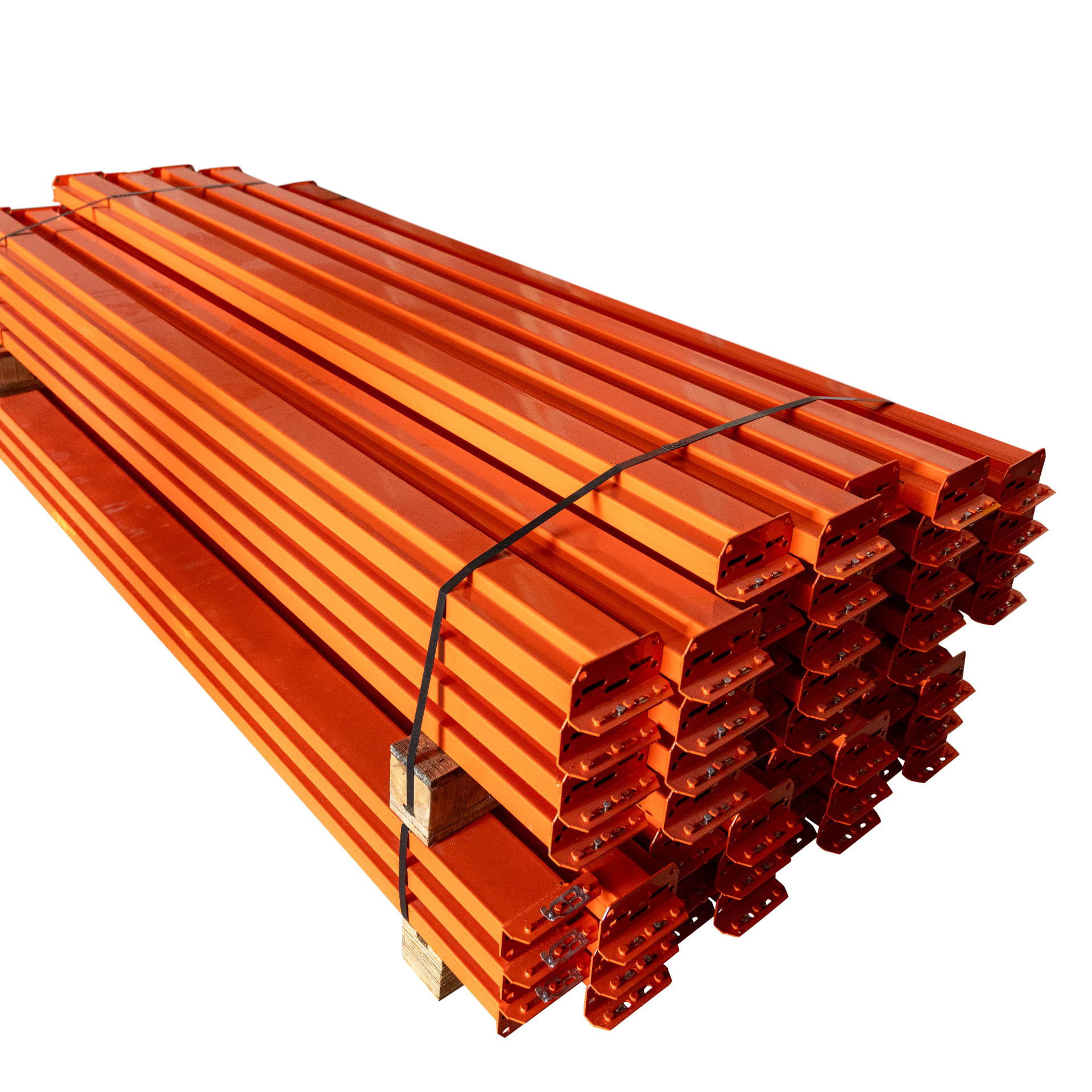

We stock 7 beam SKUs from 48″ to 144″ in 3″, 4″, 4.5″, 5″, and 6″ face heights, with rated pair capacities from 4,027 lb up to 6,337 lb. The step profile sits flush under standard wire decking and pallet supports, so dealers can quote a complete rack line — uprights, beams, and decks — out of one purchase order.
Pricing is bracketed for dealer volume, every beam ships in signature NAWL orange powder-coat, and stocking depth in the Gulf-Coast warehouse means most reorders ship same-week. Need a length, capacity, or color we don't list? Custom runs are quoted directly through the dealer portal.
| Size / Model | Part # | Capacity (lbs/pair) | Weight (lbs) | Retail | Qty | Actions |
|---|---|---|---|---|---|---|
| 3 x 48 | XBM04830163 | 5,533 | 10.88 | $35.65 | ||
| 4 x 96 | XBM09640163 | 4,027 | 23.03 | $44.11 | ||
| 4.5 x 96 | XBM09645163 | 5,216 | 24.65 | $46.17 | ||
| 5 x 96 | XBM09650163 | 6,264 | 26.28 | $68.38 | ||
| 5 x 108 | XBM10850163 | 5,568 | 29.33 | $76.25 | ||
| 5 x 120 | XBM12050154 | 5,145 | 36.70 | $84.32 | ||
| 6 x 144 | XBM14460144 | 6,337 | 55.08 | $117.82 |
// Dealers: sign in for wholesale pricing and bulk quote requests through the dealer portal.
Beams — FAQ
What load capacity do NAWL pallet rack beams carry?
Stock pair capacities range from 4,027 lb on a 4″ x 96″ beam up to 6,337 lb on a 6″ x 144″ beam. Every SKU ships with a stamped RMI / ANSI MH16.1 load table.
Are NAWL beams compatible with existing teardrop pallet rack?
Yes. NAWL beams use the standard 2-inch teardrop punch pattern and interchange with the major North American teardrop frame brands.
How fast can a dealer reorder pallet rack beams?
We stock the full beam lineup at the NAWL Gulf-Coast warehouse. Most dealer reorders ship same week to the Southeast, Texas, and the Midwest.
